Structured PTFE Sheet

MOR Structured PTFE Sheets are multidirectional oriented fibre structures with filler substances.
Cold flow & Creep is eliminated.
Higher temperature/pressure combinations possible. Ease to handle and install.
High compressibility at low pressure and outstanding recovery. High mechanical strength, chemical resistance and sealability.
Sheet Size : 1500mm x 1500mm
Thickness : 1.5mm , 2.0mm & 3.0mm

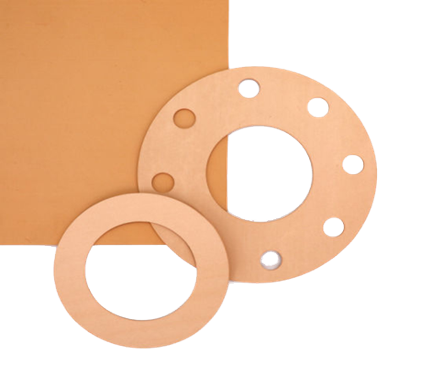

Structured PTFE filled with Silica

  • Color : Fawn
  • Density : 2.1g/m3
  • Temperature : -210°C to 260°C
  • Pressure : up to 83 bar
  • pH : 0 – 14

Structured PTFE with Barium Sulfate

  • Color : Off-white
  • Density : 2.9g/m3
  • Temperature : -210°C to 260°C,
  • Pressure : up to 83 bar
  • pH : 0 – 14

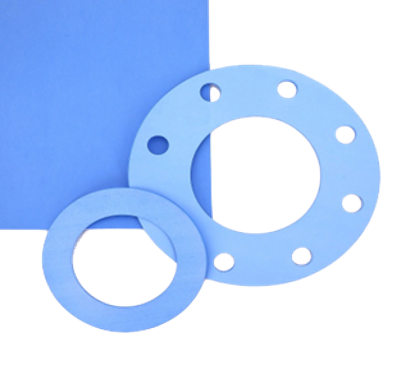

Structured PTFE with Hollow Glass Microspheres

  • Color : Blue
  • Density : 1.7g/m3
  • Temperature : -210°C to 260°C,
  • Pressure : up to 55 bar
  • pH : 0 – 14

Structured PTFE with Hollow Glass Microspheres

  • Color : White Density : 1.1g/m3
  • Temperature : -210°C to 260°C Pressure : up to 55 bar
  • pH : 0 – 14
