Insulation Gasket Lpfik Type

- LPFIK sealing gaskets have an excellent sealing and insulating design for all types of flanges. The sealing elements are encapsulated in a specially designed groove, which prevents the sealing element from breaking when the bolt torques are not equal.
- Materials such as Nitrile, EPDM, VITON, and Teflon can be used as sealing elements, increasing the options for different working conditions.
- The LPFIK is available in both full-face (Type E) and ring style (Type F) configurations. Depending on the sealing element selected, the LPFIK is rated for most hydrocarbon and water service applications.
- Both the retainer and sealing element’s temperature limits should be considered together when choosing the material. Refer to the chart for sealing gasket temperature ranges and material compatibilities.

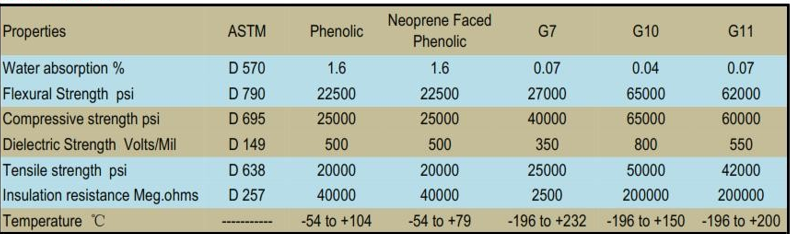

Gasket Material

Seal Element Temperature Limits

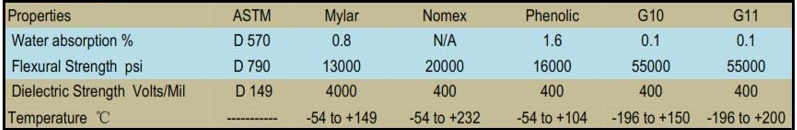

Sleeve Material

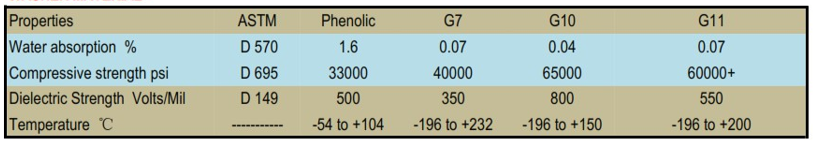

Washer Material

Steel Washer
- ZPS (Zinc plated Carbon Steel)
- XPS (Xylan coated Carbon Steel)
- SS (Stainless Steel)
